December 2025: Tuning into the Christmas Spirit
As the festive season begins this December, Badland continues to innovate and sparkle through its wide range of antennas, offering superior connectivity and reliable data transfer. Check out our featured products below or view our full range of products to find out more!
Merry Christmas!
Frequency: 3G / 4G /GPRS / GSM / LTE / GSM / 5G LTE Antennas / LTE
Mountings: Fixed Mounted Base Station
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2: 1 @frequency
Dimensions: Height: 205 mm / Width: N/A / Length: N/A / Diameter: 52mm
Cable: 3 METRES metres of LBC100
Connector: To Be Specified
Power Handling: 50 WATTS
Impedance: 50 ohm
Operating Temperature: -40° / + 85°C
Protection: IP67
OPTIMUS 4G/5G WITH WALL BRACKET
ID : OPTIMUSLTEX1
1Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Brackets / Fixed Mounted Base Station
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 170 mm / Width: N/A / Length: N/A / Diameter: 55 mm
Cable: 3.00 metres of LBC100
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

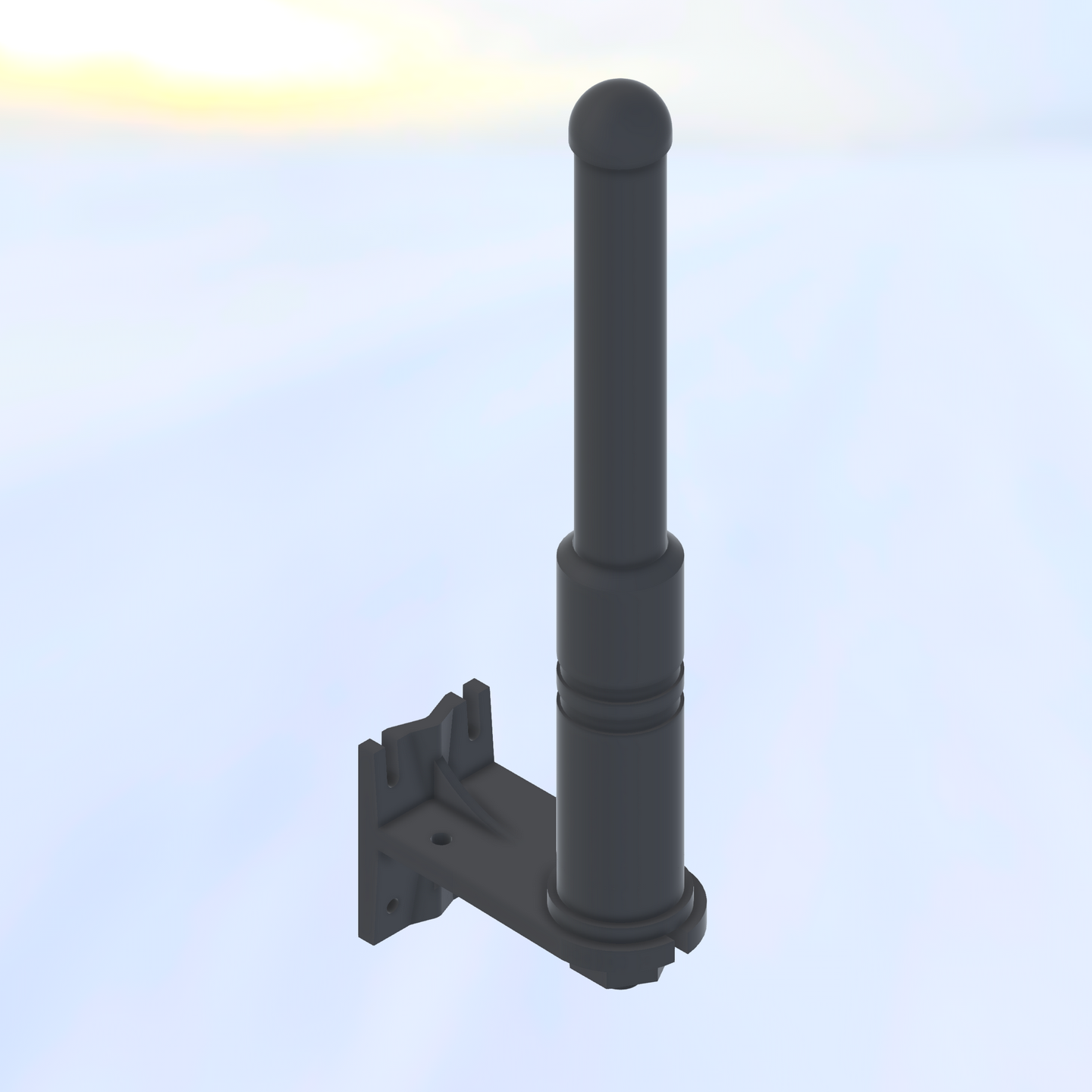

OPTIMUS MIMO 4G/5G/LTE ANTENNA WITH WALL BRACKET
ID : OPTIMUSMIMOX4W/B
2Frequency: 5G LTE Antennas / LTE / 3G / 4G /GPRS / GSM / LTE
Mountings: Fixed Mounted Base Station
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2: 1 @frequency
Dimensions: Height: 250mm / Width: / Length: / Diameter: 31.5mm
Cable: 3 METRES metres of LBC100
Connector: SMAM
Power Handling:
Impedance:
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

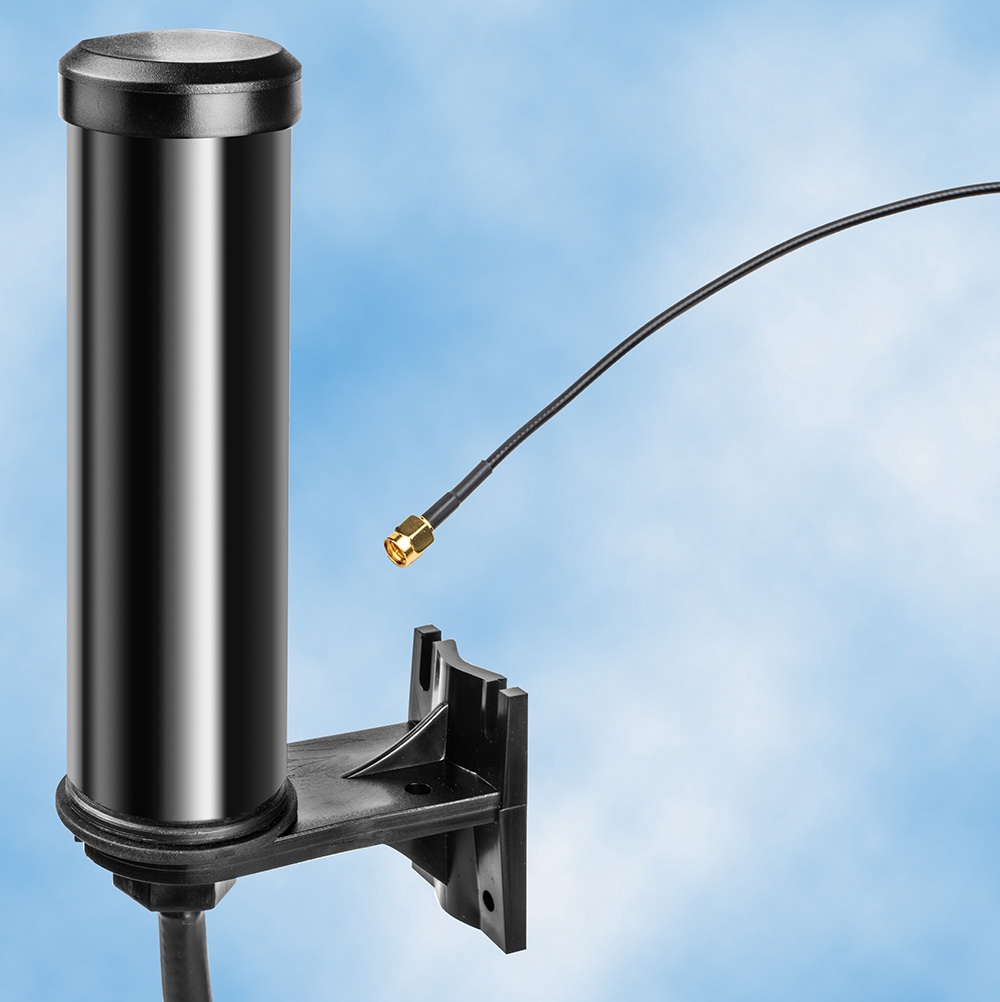

OPTIMUS MINI 4G/5G ANTENNA WALL BRACKET
ID : OPTIMINIWALLB
3
